Description

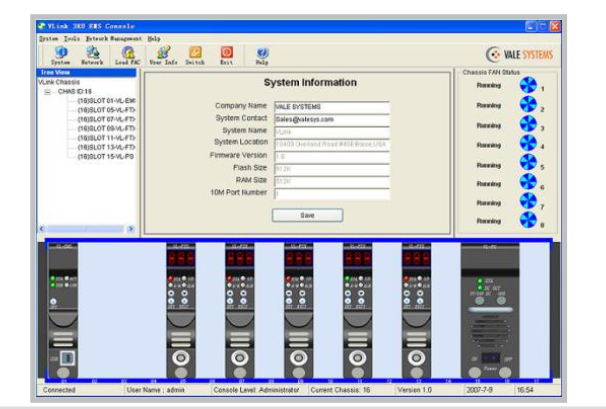

The GSDT-EMS-II equipment management module has high reliability, large Capacity, servesfor many kinds of communication modules. It is mounted in the first slot of the Excelsiorplatform to provide local monitoring and configuration, as well as remote management. TheGSDT-EMS module contains the strong function of DHCP Client. It is able to communicate with the rest of the modules via USB port for local access or RJ45 Ethernet port for remote access.The GSDT-EMS module provides NMCP (Network Management Console Program) for monitoring and configuration along with a PC compatible graphical user interface(GUI). The GSDT-EMS integrates the SNMP protocol and the SCTE-HMS-MIBs for remote access via a standard SNMP agent.

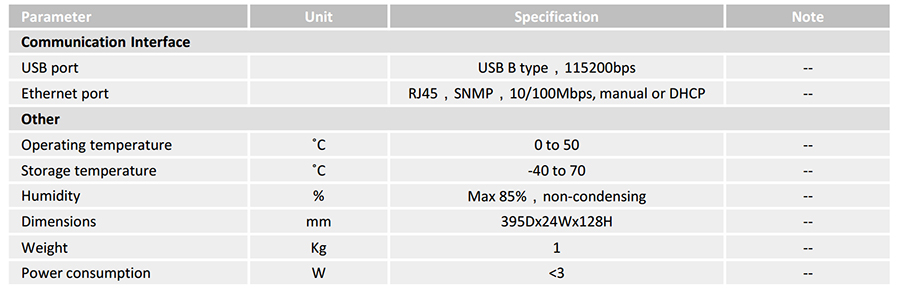

Specifications
Features
■ Short circuit protection
■ USB interface for local monitoring and setting
■ 10/100Mbps Ethernet port for communication with SNMP
■ DHCP Client
■ LEDs to indicate data access activity
■ Temp monitoring and fan status indication
■ Hot-swap design
■ Firmware field upgradeable
